Overview

QBench templates use the Jinja templating engine to organize and format all of your data. Jinja combines HTML and Python-like expressions to read and display variables from QBench. Important fields that you will want to display in your templates include core fields, user-created fields, and worksheet variables.

QBench provides an easy way to manage your templates under Configuration > Application > Templates. You can edit your template within the app or use your own code editor and paste it into QBench. The preview button will let you check the current design of the template so you can easily see your changes. Once you are done configuring the template, you will be able to use it to generate reports.

Referencing QBench Variables - Core Fields

Basic Syntax:

Jinja references QBench variables by surrounding the variable with double curly brackets. It is important to note that these variables are CASE SENSITIVE. For example, if we wanted to display the results field of a test we would write:

{{ test.results }}

Referencing a DATETIME field:

QBench stores date fields as DATETIME objects. You can format the DATETIME object however you like by using the strftime() function and following the format code found here. All QBench DATETIME objects are stored in UTC and can be converted to local time using the custom local_time jinja filter.

{{ test.start_date.strftime('%m/%d/%Y') }} is the start date in UTC

{{ test.start_date|local_time }} is the start date in my local timezone

Referencing a custom ID field:

Custom IDs can be referenced using a function called get_display_id(). This function attempts to retrieve a custom ID only if custom IDs are enabled and the object has a custom ID. If not, the function will return the internal QBench ID. get_display_id() takes one argument that is already created for you in the report template: enabled_custom_ids. If you want to retrieve a sub sample ID, an additional argument needs to be passed in called sub_sample_increment_id

<p>This order has an ID of
{{ test.sample.order.get_display_id(enabled_custom_ids) }}.</p>

<p>This sample has an ID of
{{ test.sample.get_display_id(enabled_custom_ids, enabled_sub_sample_increment_id) }}.
</p>

Referencing QBench Variables - Related QBench Objects

Basic Syntax:

Some QBench objects are interrelated and can be referenced from one another. For example, you may want to display the assay title of a test.

{{ test.assay.title }}

Lists of Related Objects:

Sometimes a QBench object can have a variable that is a list of other objects e.g. orders can have many samples and samples can have many tests. To iterate through these lists, we use Jinja’s for loop syntax. Iterating through all tests of a sample would look something like this:

{% for test in sample.tests %}
 <p>Test result is {{ test.results }}</p>
{% endfor %}

Referencing QBench Variables - Additional Fields

Basic Syntax:

Because of the way QBench is designed, user-created fields must be referenced in a slightly different way than core fields because they are stored like a python dictionary. If we have a sample additional field named “my_custom_field” we can reference it by writing

{{ sample['my_custom_field'] }}

Checkbox Fields:

Additional fields that are of type BOOL are stored as a 0 or 1. Since Python will interpret 0 as False and 1 as True, these types of fields can be treated as a regular boolean value. However, if you would like to explicitly print “True” of “False” within the template you would need to use an if statement.

{% if test['is_paid'] %}

<span>True</span>

{% else %}

<span>False</span>

{% endif %}

Datetime Fields:

Additional fields that are of type DATE or DATETIME are a special case. They have an extra field called date_value and datetime_value that can only be accessed by the additional_fields variable of an object. It is designed this way so the fields can be manipulated as a DATE or DATETIME object instead of a plain string object. Here is an example of localizing a DATETIME additional field:

{% if sample.additional_fields['my_custom_field'] and sample.additional_fields
['my_custom_field'].datetime_value %}

    {{ sample.additional_fields[‘my_custom_field’].datetime_value|local_time }}

{% endif %}

Referencing QBench Variables - Additional Object Fields

QBench allows for Additional Fields to reference another QBench Object (e.g. a User). In order to access the related object, you must reference the “addiitonal_fields” attribute and utilize an Additional Field’s “get_referenced_obj” method. For example:

{% set user_obj = test.additional_fields['second_technician'].get_referenced_obj() %}
{{ user_obj.first_name + ' ' + user_obj.last_name }}

For Multi-Select Additional Fields that reference another QBench Object, a different method called “get_referenced_obj_dict” will return a dictionary where the Key is the Object ID and the Value is the actual Object. For example, if a Test had an Additional Field called “technician_list” with values “4 - John Doe, 9 - Sally Smithers”, the following code can be used to display their names:

{% set user_objs = test.additional_fields['technician_list']
 .get_referenced_obj_dict() %}
{% for key, value in user_objs.items() %}
    <div>ID: {{ key }}</div>
    <div>Name: {{ value.first_name + ' ' + value.last_name }}</div>
    <div>Email: {{ value.email }}</div>
{% endfor %}

The resulting value “user_objs” would look like the following dictionary:

{
    4: <User 'John Doe'>,
    9: <User 'Sally Smith'>
}

Referencing QBench Variables - Worksheet Data

To reference variables from a worksheet, the report template is passed a dictionary containing all worksheet information. For Test Level reports, there is only one worksheet so the variable worksheet_data is used. For Order/Sample Level reports, it is possible to have more than one worksheet so the variable worksheet_data_list_test_id_map is used. These dictionaries may look something like this:

Test Level Reports:

Worksheet:

First Input: __(input, first_input)__
Second Input: __(input, second_input)__
Average: __(calculation, average, ((first_input + second_input) / 2))__

worksheet_data (template variable):

{
    first_input': {'value': '10'},
    second_input': {'value': '20'},
    average': {
        'formula': '((first_input + second_input) / 2)',
        'value': '15'
    }
}

worksheet_data (template variable):

{
    first_input': {'value': '10'},
    second_input': {'value': '20'},
    average': {
        'formula': '((first_input + second_input) / 2)',
        'value': '15'
    }
}

You can retrieve the calculation value from the worksheet using Python’s dictionary syntax. To be safe, it is a good idea to use if statements before calling the dictionary value in case the key does not exist

{{ worksheet_data['average']['value'] }} {# Unsafe and may result in error #}

{# Safe and prevents errors #}
{% if worksheet_data.get('average') and worksheet_data['average'].get('value') %}
    <p>Average is {{ worksheet_data['average']['value'] }}
{% endif %}

Order/Sample Level Reports:

The variable worksheet_data_list_test_id_map is a nested dictionary mapping test IDs to their worksheet values. This is similar to worksheet_data except it adds one more layer to the dictionary.

{% for test in sample.tests %}
   <p>First Input: {{ worksheet_data_list_test_id_map[test.id]
       [‘first_input’][‘value’] }}</p>
   <p>Second Input: {{ worksheet_data_list_test_id_map[test.id]
       [‘second_input’][‘value’] }}</p>
   <p>Average: {{ worksheet_data_list_test_id_map[test.id]
       [‘average’][‘value’] }}</p>
{% endfor %}

Referencing Attachments (Images)

Attachments are stored as a map with the file name as the key. You can access attachments for report configs, orders, samples, and tests. You must use a jinja filter to download the attachment. Refer to the following examples:

<img src="file://{{ report_config_attachments['header.png']
 .asset_id|download_file_to_local_tmp }}">

<img src="file://{{ order_attachments['order_photo.jpg'].asset_id|download_file_to_local_tmp }}">

<img src="file://{{ sample_attachments['sample_photo.png']
 .asset_id|download_file_to_local_tmp }}">

<img src="file://{{ test_attachments['test_photo.png']
 .asset_id|download_file_to_local_tmp }}">

Since an Order Level Report can have many samples and tests, a sample or test ID must be included when accessing their attachments.

Sample Attachments in an Order Level Report:

Sample attachments in Order Level Reports are stored as a 2D dictionary with the first key being the sample ID and the second key being the attachment name. The following is an example of displaying a sample attachment with an ID of 123 and an attachment name of sample_photo.png:

<img src="file://{{ sample_attachments[123]['sample_photo.png']
 .asset_id|download_file_to_local_tmp }}">

Test Attachments in an Order or Sample Level Report:

Test attachments are also stored as a 2D dictionary in Order and Sample Level Reports. You can access test attachments in a similar fashion by passing in the test ID as the first key and the attachment name as the second key. Here is an example of displaying a test attachment named “test_picture.jpg” for test ID 456:

 <img src="file://{{ test_attachments[456]
 ['test_picture.jpg'].asset_id|download_file_to_local_tmp }}">

PDF Attachments:

If you upload a PDF attachment to an Order, you can choose to append it to your report. Marking the “Include In Report” checkbox will add it to the end, sorting by name if you have multiple PDFs to attach.

Image Attachments:

If you upload image attachments with an extension including JPG, JPEG, and PNG, you can choose to include that to your report by marking the “Include In Report” checkbox before uploading. Keep in mind that, when configuring a template, you will need to reference those attachments to be displayed on the report. Below is an example of how you can reference those images in your test report template:

{% for attachment in test.get_included_report_attachments() %}
    <img src=”{{attachment.asset_id|get_asset_file_download_url()}}” />
{% endfor %}

Global settings: There is a setting in the General Settings page called “Automatically include attachments in a Report upon upload.” that will always include attachments uploaded in the report.

Report Template Variables

Template Variable	Description	Type	Order Level	Sample Level	Test Level
completed_date_string	String of date test was complete	STRING	Yes	Yes	Yes
control_set_controls	Dictionary of controls	DICTIONARY	Yes	Yes	Yes
control_set_controls_sorted_keys	List of sorted keys for control_set_controls variable	ARRAY	Yes	Yes	Yes
customer	The customer who is on the order	QBENCH OBJECT	Yes	Yes	Yes
date_generated	The date the report was generated	DATETIME	Yes	Yes	Yes
enabled_custom_ids	List of enabled custom IDs	ARRAY	Yes	Yes	Yes
enabled_sub_sample_increment_id	Boolean for sub sample incremented IDs	BOOLEAN	Yes	Yes	Yes
end_date	Date the test was completed	DATETIME	Yes	Yes	Yes
generated_date_string	String of when report was generated	STRING	Yes	Yes	Yes
logo_path	Path to your logo image	STRING	Yes	Yes	Yes
order	The order you are reporting on	QBENCH OBJECT	Yes	Yes	Yes
order_attachments	Dictionary of order attachments with the file name as the key	DICTIONARY	Yes	Yes	Yes
report_config_attachments	Dictionary of report config attachments with the file name as the key	DICTIONARY	Yes	Yes	Yes
report_page_count	Number of pages in the uploaded PDF (used when uploading a report)	INTEGER	Yes	Yes	Yes
sample	The sample you are reporting on	QBENCH OBJECT	No	Yes	Yes
sample_attachments	Dictionary of sample attachments with the file name as the key	DICTIONARY	Yes	Yes	Yes
signature	The selected signature object	QBENCH OBJECT	Yes	Yes	Yes
start_date	Date the test was started	DATETIME	Yes	Yes	Yes
test	The test you are reporting on	QBENCH OBJECT	No	No	Yes
test_attachments	Dictionary of test attachments with the file name as the key	DICTIONARY	Yes	Yes	Yes
testing_date_string	String of date test was started	STRING	Yes	Yes	Yes
tests	List of tests you are reporting on	ARRAY	Yes	Yes	No
worksheet_data	Dictionary of worksheet data	DICTIONARY	No	No	Yes
worksheet_data_list_test_id_map	Dictionary of worksheet data	DICTIONARY	Yes	Yes	No
template_revision_number	Integer value of how many reports have been generated for this object	INTEGER	Yes	Yes	Yes

Invoice Template Variables

Template Variable	Description	Type
assay_ids	List of assay ids that are associated with the invoice	ARRAY
customer	The customer associated with the invoice	QBENCH OBJECT
date_generated	The date the invoice was generated	DATETIME
discounts	List of discount items on the invoice	ARRAY
enabled_custom_ids	List of enabled custom IDs	ARRAY
enabled_sub_sample_increment_id	Boolean for sub sample incremented IDs	BOOLEAN
invoice	The invoice you are printing	QBENCH OBJECT
invoice_config_attachments	Dictionary of invoice attachments with the file name as the key	DICTIONARY
invoice_items	List of invoice items on the invoice	ARRAY
logo_path	Path to your logo image	STRING
order	The order associated with the invoice	QBENCH OBJECT
order_attachments	Dictionary of order attachments with the file name as the key	DICTIONARY
sample_attachments	2D Dictionary of sample attachments with the sample ID as the first key and file name as the second key	DICTIONARY
test_attachments	2D Dictionary of test attachments with the test ID as the first key and the file name as the second key	DICTIONARY
subtotals	List of subtotals on the invoice	ARRAY
surcharges	List of surcharges on the invoice	ARRAY

Payment Template Variables

Template Variable	Description	Type
customer	The customer associated with the payment	QBENCH OBJECT
date_generated	The date the payment was generated	DATETIME
payment	The payment you are printing	QBENCH OBJECT
invoice_payments	List of InvoicePayment items on the payment	ARRAY
payment_config_attachments	Attachments stored in payment template	DICTIONARY
user	Current user	QBENCH OBJECT

PrintDoc Template Variables

Template Variable	Description	Type	Order Level	Sample Level	Test Level	Batch Level
batch	The selected batch for the current PrintDoc	QBENCH OBJECT				Yes
batch_attachments	Dictionary of attachments uploaded to the Batch	DICTIONARY				Yes
batches	A list of child Batches for the selected Batch	ARRAY				Yes
date_generated	DateTime object of the date this PrintDoc was generated	DATETIME	Yes	Yes	Yes	Yes
generated_date_string	String representation of when this PrintDoc was generated	STRING	Yes	Yes	Yes	Yes
order	The selected Order for the current PrintDoc	QBENCH OBJECT	Yes
printdoc_config_attachments	Dictionary of attachments uploaded to the Order	DICTIONARY	Yes	Yes	Yes	Yes
sample	The selected Sample for the current PrintDoc	QBENCH OBJECT		Yes
sample_attachments	Dictionary of attachments uploaded to the Sample	DICTIONARY		Yes
test	The selected Test for the current PrintDoc	QBENCH QBENCH OBJECT			Yes
test_attachments	Dictionary of attachments uploaded to the Test	DICTIONARY			Yes
tests	List of tests for the current PrintDoc	DICTIONARY			Yes

Jinja Filters

Jinja filters act as a function you can call within a template. Jinja provides a number of built-in filters you can use to further customize your reports. There are some custom filters you can use within the report template that are specific to QBench.

local_time(date, fmt)  - returns a string of the date in local time with the format provided. Default format is “%m/%d/%Y %I:%M %p”

{{ test.start_date|local_time('%m/%d/%Y') }}
{{ test.end_date|local_time }}

download_file_to_local_tmp(asset_id) - downloads a QBench asset to local tmp and returns the file path. This can be used to display an image (i.e. a signature) on the report template

<img
src="{{test.tech.report_signatures[0].image_asset_id|download_file_to_local_tmp }}">

get_json_from_asset(asset_id) - downloads a QBench asset file and parse the JSON contents into a dictionary.

{% for filename, attachment in report_config_attachments.items() if filename.endswith('.json') %}
  <div>
    <label>{{filename}}</label><br />
    {% set json = attachment.asset_id | get_json_from_asset %}
    <pre>{{json|pprint}}</pre>
    {{json.get('myJsonKey')}}
  </div>
{% endfor %}



get_yaml_from_asset(asset_id) - downloads a QBench asset file and parse the YAML contents into a dictionary

{% for filename, attachment in report_config_attachments.items() if filename.endswith('.yaml') %}
  <div>
    <label>{{filename}}</label><br />
    {% set yaml = attachment.asset_id | get_yaml_from_asset %}
    <pre>{{yaml|pprint}}</pre>
    {{yaml.get('myYamlKey')}}
  </div>
{% endfor %}

verify_worksheet_value(worksheet_dict, key, check_against) - checks if a worksheet identifier exists in a test’s worksheet data. Will return True or False depending on whether or not the identifier exists in a Test’s worksheet data. The function accepts an optional parameter called check_against, which is a list of values to check against to evaluate the function to False. The example below checks the worksheet data for a worksheet identifier titled “finding” if it exists and if its value doesn’t equal the text “ND”.

{% set worksheet_data = test.get(“worksheet_data”) %}
{% if worksheet_data|verify_worksheet_value(“finding”, [“ND”]) %}
{{ worksheet_data|extract_worksheet_value(“finding”) }}
{% else %}
No findings
{% endif %}

extract_worksheet_value(worksheet_dict, key, check_against, default_value) - utilizes the verify_worksheet_value function to check whether the provided key exists in the worksheet data (utilizing the same parameters as well). There is also a parameter to set a default value if the verify_worksheet_value function returns False. This example below shows displays the worksheet value for “finding” if it exists and “No findings” if there isn’t a value or the value equals the text “ND”

{% set worksheet_data = test.get(“worksheet_data”) %}
{{ worksheet_data|extract_worksheet_value(“finding”, [“ND”], “No findings”) }}

round_to_sig_fig(value, significant_figures) - attempts to convert a value to a numeric decimal value. All trailing 0’s after a non-zero integer is significant. All leading 0’s before a non-zero integer is NOT significant. If the return value is 0, the method will return 0.0* where trailing 0’s equate the length of significant figures.

{% set x = 1000 %}
<div>Normal Val: {{ x }} Formatted: {{ x|round_to_sig_fig(2) }}</div>
{% set x = "ND" %}
<div>Normal Val: {{ x }} Formatted: {{ x|round_to_sig_fig(3) }}</div>
{% set x = 1.2546 %}
<div>Normal Val: {{ x }} Formatted: {{ x|round_to_sig_fig(4) }}</div>

numeric_comparison(x, y, operator) - attempts to evaluate a comparison of [“>”, “<”, or “=”] using the parameters X and Y. X is the leading value and Y is used as the comparator.

{% set x = '3.5' %}
{% set y = '3.5' %}
<div>Greater Than: {{ x|numeric_comparison(y, ">") }}</div>
<div>Less Than: {{ x|numeric_comparison(y, "<") }} </div>
<div>Equal To: {{ x|numeric_comparison(y, "=") }}</div>

string_comparison(x, y) - attempts to evaluate if string x and y are similar strings despite whitespaces and case conditions

{% set x = 'H   eL L o' %}
{% set y = 'h E l  Lo' %}
<div>String Compare: {{ x|string_comparison(y) }}</div>

call_numpy_func(func, *args, **kwargs) - utilize python library numpy. Func is the name of the function to use from the numpy library. *args are required parameters for the specified function. **kwargs are optional parameters that utilize a key/value pair value to be passed as a parameter. https://docs.scipy.org/doc/numpy-1.11.0/reference/

{% set mean = [1, 2, 3, 4, 5] %}
{% set variance = [[1,2], [3,4]] %}
{% set std = [[1,2], [3,4]] %}
<div>Mean: {{ 'mean'|call_numpy_func(mean) }}</div>
<div>Variance: {{ 'var'|call_numpy_func(variance) }}</div>
<div>Standard Deviation: {{ 'std'|call_numpy_func(std) }}</div>

call_scipy_func(func, *args, **kwargs) - utilize python library scipy. Func is the name of the function to use from the scipy library. *args are required parameters for the specified function. **kwargs are optional parameters that utilize a key/value pair value to be passed as a parameter.

https://docs.scipy.org/doc/scipy-1.2.1/reference/

call_stats_func(func, *args, **kwargs) - utilize python library scipy’s stats. Func is the name of the function to use from the stats library. *args are required parameters for the specified function. **kwargs are optional parameters that utilize a key/value pair value to be passed as a parameter.

https://docs.scipy.org/doc/scipy-1.2.1/reference/tutorial/stats.html

{% set r_x = [10, 16, 20, 50, 100, 400] %}
{% set r_y = [100, 106, 112, 118, 124, 130] %}
{% set results = 'linregress'|call_stats_func(r_x, r_y) %}
<div>Results: {{ results }}</div>
<div>Slope: {{ results['slope'] }}</div>
<div>Intercept: {{ results['intercept'] }}</div>
<div>R Value: {{ results['rvalue'] }}</div>
<div>R Squared: {{ results['rvalue']**2 }}</div>
<div>P Value: {{ results['pvalue'] }}</div>

call_pyplot_func(func, *args, **kwargs) - utilize python library matplotlib’s pyplot. Func is the name of the function to use from the pyplot library. *args are required parameters for the specified function. **kwargs are optional parameters that utilize a key/value pair value to be passed as a parameter.

{% set r_x = [1, 3, 4, 5, 8, 9] %}
{% set r_y = [1, 1, 2, 2, 5, 8] %}
<div>Plot Graph</div>
{% set fig = 'figure'|call_pyplot_func %}
{% set ax = fig|call_object_func('add_subplot', 111) %}
{% set _x = ax|call_object_func('plot', r_x, r_y, 'ro') %}
{% set _x = ax|call_object_func('axis', [0, 10, 0, 10]) %}
{% set _x = fig|call_object_func('savefig', '/tmp/fig-{}.png'.format(sample.id) %}
<img style="width:300px; height:300px;" src="file:///tmp/fig-{{sample.id}}.png">

call_object_func(lib_object, func, *args, **kwargs) - utilizes an object created in the report and invokes a method from the referenced object. Func is the name of the function to use from the object. *args are required parameters for the specified function. **kwargs are optional parameters that utilize a key/value pair value to be passed as a parameter.

evaluate_specification(spec, test_result) - compares a specification object to a test_result to evaluate if the test_result meets the specification criteria.

{{ spec|evaluate_specification(test.results }}

parse_json(json_string) - converts a JSON string to a JSON object. Will return None if json_string is not formatted properly for conversion.

{% set json_string = '{"bad":"grade", "good":"dog"}' %}
{% set json_object = json_string|parse_json %}
<div>Json Object Bad: {{ json_object.get('bad') }}</div>

qr_code_base64(string) - Generates a base64 encoded string to be used as the src attribute for an <img> tag.

Example Usage:

<img src="{{'https://qbench.net'|qr_code_base64}}" />

barcode_base64(string) - Generates a base64 encoded string to be used as the src attribute for an <img> tag. write_text can be True or False.

Example Usage:

<img src="{{'https://qbench.net'|barcode_base64(write_text=False)}}" />

b64encode(string) - Generates a base64 encoded string.

Example Usage:

<div>{{ "b64encode"|b64encode }}</div>

Output:

YjY0ZW5jb2Rl

b64decode(string) - Decodes a base64 encoded string.

Example Usage:

<div>{{ "YjY0ZW5jb2Rl"|b64decode }}</div>

Output:

b64encode

id_range(entities) - Loops over a list of entities and returns the range.

Example Usage:

{# assume 3 tests with IDs 150, 151, and 152 #}
<div>{{ sample.tests|id_range }}</div>

Output:

150 - 152

add_days_to_date(date, days) - Adds specified number of days to a date object.

Example Usage:

{# assume sample.date_received is "2023-08-11 18:16:00" #}
<div>{{ sample.date_received|add_days_to_date(3) }}</div>

Output:

2023-08-14 18:16:00

subtract_days_to_date(date, days) - Subtract specified number of days from a date object.

Example Usage:

{# assume sample.date_received is "2023-08-11 18:16:00" #}
<div>{{ sample.date_received|subtract_days_to_date(3) }}</div>

Output:

2023-08-08 18:16:00

get_date_range(range) - Takes a date range and returns the first and last dates of that range. Possible values for range are "this_week", "last_week", "this_month", "last_month".

Example Usage:

{# assume the current date is 12/05/2023 #}
<div>{{ "last_month"|get_date_range }}</div>

Output:

(datetime.date(2023, 11, 1), datetime.date(2023, 11, 30))

date_parse(date_string) - Takes a date string and returns a datetime object.

Example Usage:

{# assume the field is an additional field of type "datetime" with value "12/05/2023" #}
<div>{{ sample.date_additional_field|date_parse }}</div>

Output:

2023-12-05 00:00:00

dropbox_sign_input(field_type, required=True, signer_number=1, size_large=False) - Generates a text tag to be parsed by Dropbox Sign during a signature request process. The inputs to this filter are as follows:

• field_type: The UI component that will be displayed on the Dropbox Sign document signing page. Must be one of sig, initial, text, check or date. Find the full list of types here. Note that QBench currently does not support these fields: text-merge and checkbox-merge.
• required: Indicates if the field is required or not. We recommend requiring sig and initial fields.
• signer_number: Associate this field_type to a particular signer. You can create a variety of UI components that can be completed only by the designated signer. Must be a positive integer.
• size_large: To display a wider signature box, set this to True.

Example Usage:

<div>Signed By:</div>
<div>{{ 'sig' | dropbox_sign_input(True,1) }}</div>

Here are some example Jinja filters as well as their result on the Dropbox Sign signing page.

Standard Deviation Calculations for Worksheets

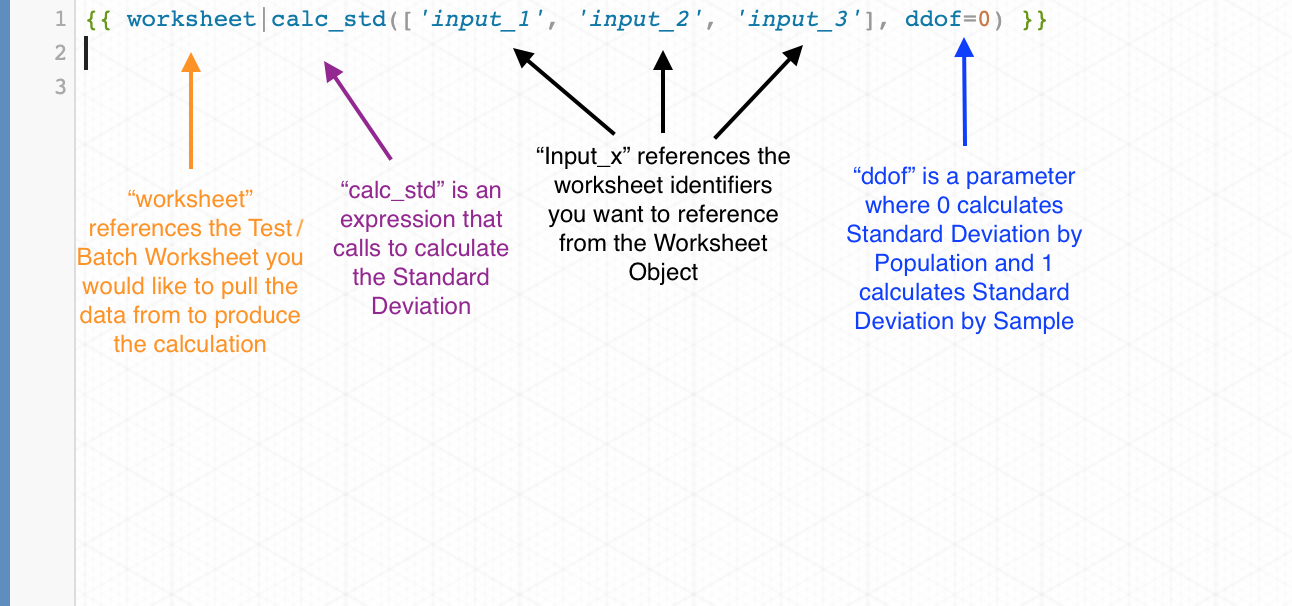

In the worksheet, you are able to calculate Standard Deviation by using the following function

 {{worksheet | calc_std ([ ‘ input_1’ , ‘input_2’ , ‘input_3’ ] , ddof = 0}}

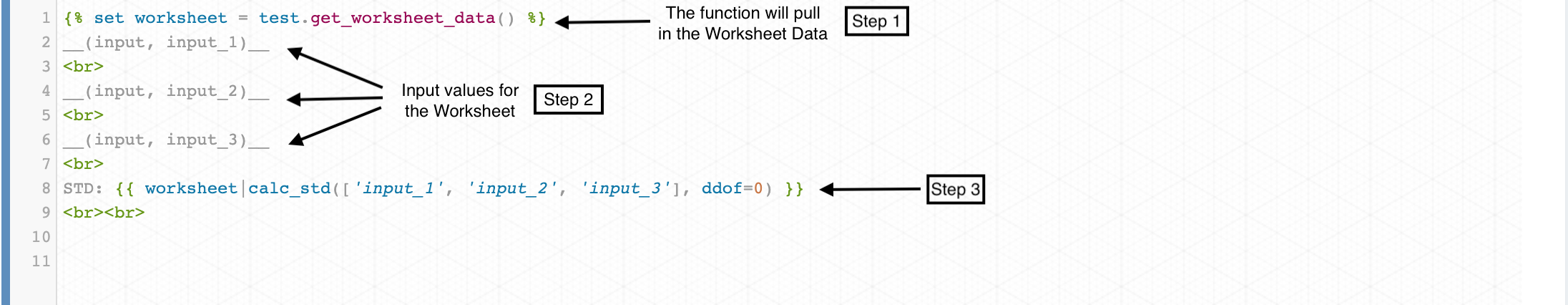

In order to setup the Standard Deviation Worksheet, the following would need to be implemented:

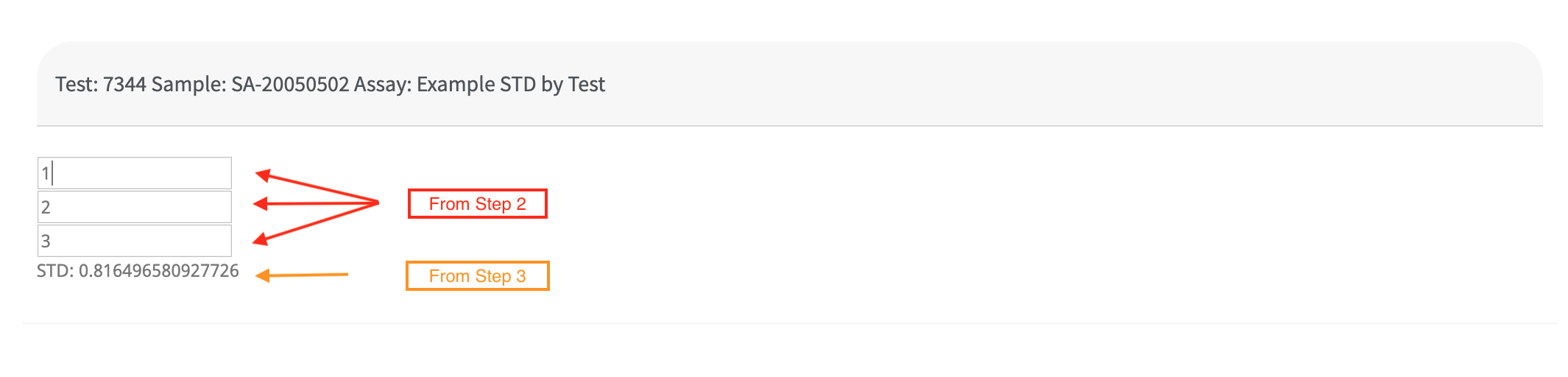

Once the Worksheet Configuration has been saved and “Set as Active”, the Worksheet can be added to any Test(s) or Batch(es). Below depicts the rendered Worksheet that can calculate for the Standard Deviation.

Referencing Batch Plate Maps

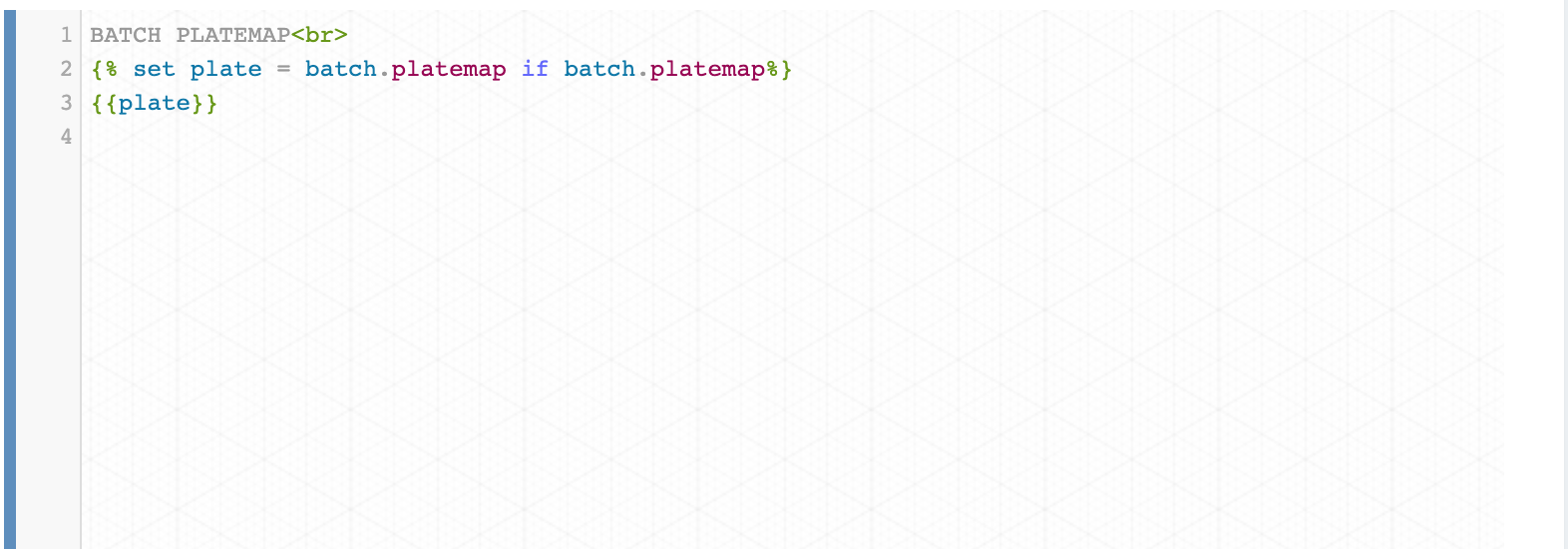

Referencing a Sample(s) in the Batch(es) Plate Map is also available for configurations through the Worksheet. Using the {% set plate = batch.platemap if batch.platemap%} function, you are able to retrieve and reference the different Samples in the Plate Map with {{plate}}.

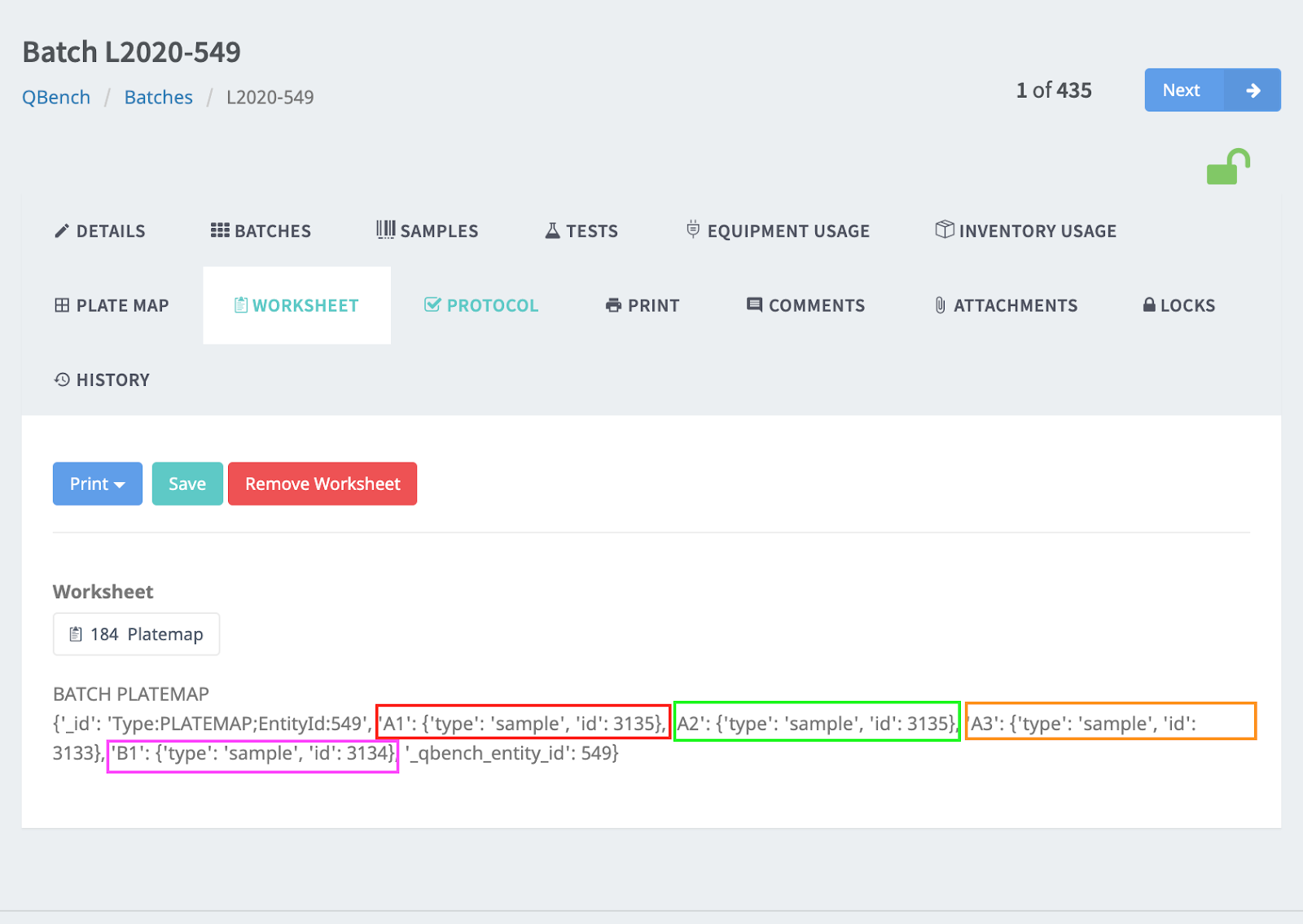

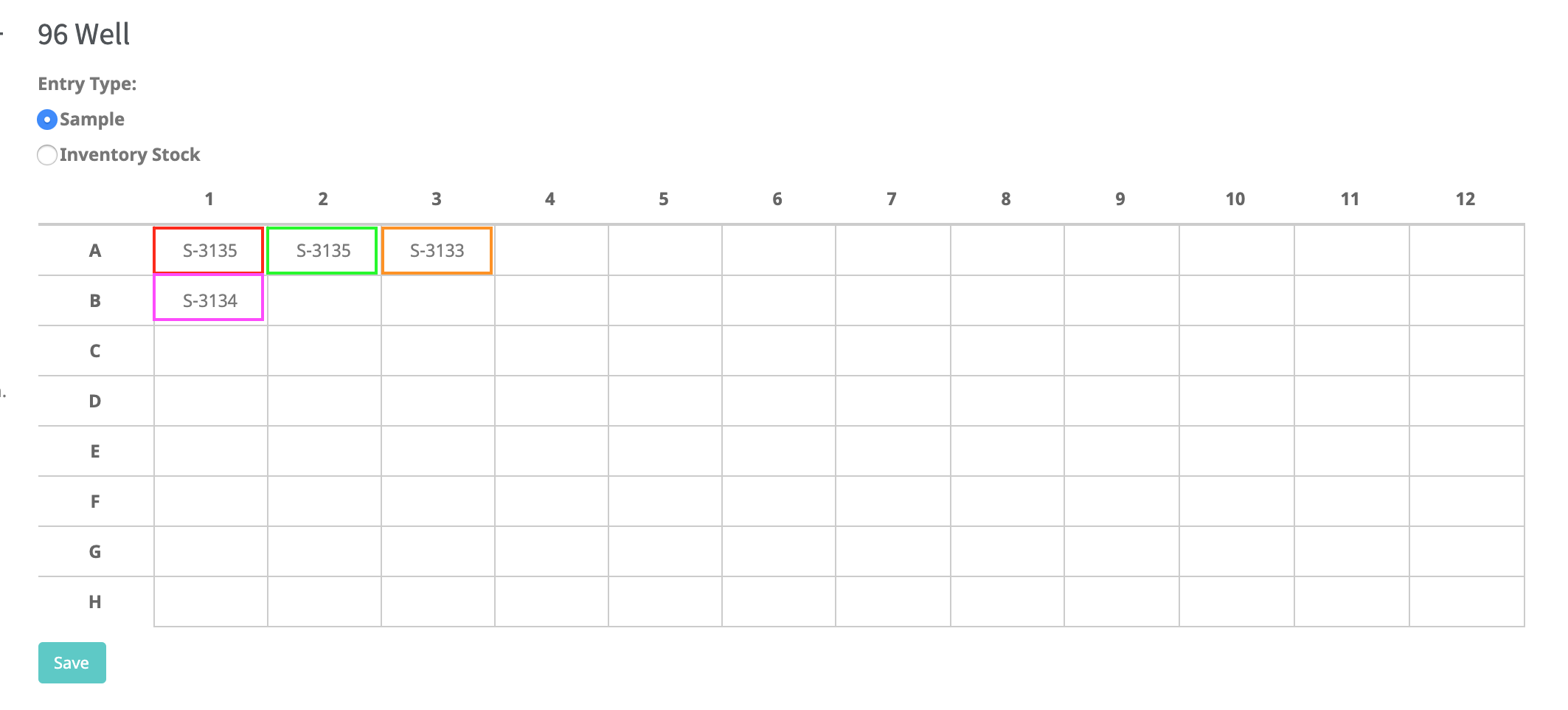

Below depicts the Samples that are referenced in the Plate Map by Worksheet.

Below is a list of QBench objects and their internal field names. Fields between ‘< >’ brackets are references to other QBench objects.

Order:

Order Fields
Field	Internal Field Name	Data Type
ID	id	INTEGER
Custom ID	custom_formatted_id	STRING
Date Received	date_received	DATETIME
Due Date	date_required	DATETIME
Special Instructions	special_instructions	STRING
Status	state	STRING
<Customer>	customer_account	QBENCH OBJECT
<Samples>	samples	LIST<Sample>
<Project>	project	QBENCH OBJECT
<Invoices>	invoices	LIST<Invoice>
<Tags>	tags	LIST<Tag>
Order Model Helper Functions
Get Display ID (Custom ID if exists, else ID)	get_display_id()	STRING | INTEGER
Get Total Sample Count	get_total_samples()	INTEGER
Get Total Test Count	get_total_tests()	INTEGER
Get Comments	get_comments()	LIST<Comment>
Get Attachments	get_attachments()	LIST<Attachment>
Get All Invoices	get_all_invoices()	LIST<Invoice>

Sample:

Sample Fields
Field	Internal Field Name	Data Type
ID	id	INTEGER
Custom ID	custom_formatted_id	STRING
Lab ID	lab_id	STRING
Sample Type	sample_type	STRING
Description	description	STRING
Time of Collection	time_of_collection	DATETIME
Point of Collection	point_of_collection	DATETIME
<Accessioning Type>	accessioning_type	QBENCH_OBJECT
<Parent Sample>	parent_sample	QBENCH OBJECT
<Sub Samples>	sub_samples	LIST<Sample>
<Order>	order	QBENCH OBJECT
<Tests>	tests	LIST<Test>
<Source>	source	QBENCH OBJECT
<Project>	project	QBENCH OBJECT
<Location>	location	QBENCH OBJECT
<Tags>	tags	LIST<Tag>
Sample Model Helper Functions
Get Display ID (Custom ID if exists, else ID)	get_display_id()	STRING | INTEGER
Get Sample	get_original_sample()	QBENCH OBJECT
Get Sub Sample Count	get_sub_sample_count()	INTEGER
Get Sub Sample LIST	get_sub_sample_id_list	LIST<String | Integer>
Get Total Test Count	get_total_tests()	INTEGER
Get Days in Current Location	get_days_in_current_location()	INTEGER
Get Comments	get_comments()	LIST<Comment>
Get Attachments	get_attachments()	LIST<Attachment>
Get Worksheet Configurations	get_worksheet_config()	STRING
Get Worksheet Data	get_worksheet_data()	DICTIONARY

Test:

Test Fields
Field	Internal Field Name	Data Type
ID	id	INTEGER
Status	state	STRING
Estimated Start Date	estimated_start_date	DATETIME
Estimated Complete Date	estimated_complete_date	DATETIME
Start Date	start_date	DATETIME
Complete Date	complete_date	DATETIME
Results	results	STRING
Comments	comments	STRING
<Technician>	tech	QBENCH OBJECT
<Assay>	assay	QBENCH OBJECT
<Panel>	panel	QBENCH OBJECT
<Sample>	sample	QBENCH OBJECT
<Tags>	tags	LIST<Tag>
<Control>	control	QBENCH OBJECT
<Turnaround>	turnaround	QBENCH OBJECT
<QC Data>	control_set	QBENCH OBJECT
Test Model Helper Functions
Get Order ID	get_order_id()	STRING | INTEGER
Get Worksheet Configuration	get_worksheet_config()	STRING
Get All Test Specification	get_all_test_specifications()	LIST<Specification>
Get Worksheet Data	get_worksheet_data()	DICTIONARY
Get Comments	get_comments()	LIST<Comment>
Get Attachments	get_attachments()	LIST<Attachment>

Assay:

Assay Fields
Field	Internal Field Name	Data Type
ID	id	INTEGER
Title	title	STRING
Duration	duration	INTEGER
Method	method	STRING
Method Detection Limit	method_detection_limit	FLOAT
Units	units	STRING
Reporting Limit	reporting_limit	FLOAT
Spike Level	spike_level	FLOAT
Percent Recovery Lower Limit	percent_recovery_lower_limit	FLOAT
Percent Recovery Upper Limit	percent_recovery_upper_limit	FLOAT
Relative Percent Difference Limit	relative_percent_difference_limit	FLOAT
Sort Order	sort_order	INTEGER
Base Price	base_price	DECIMAL(19,2)
<Tags>	tags	LIST<Tag>
<Team>	team	QBENCH OBJECT
<Category>	category	QBENCH OBJECT
<Default Technician>	default_technician	QBENCH OBJECT
<Turnarounds>	assay_turnarounds	LIST<Turnaround>
Assay Model Helper Functions
Get Comments	get_comments()	LIST<Comment>
Get Attachments	get_attachments()	LIST<Attachment>

Panel:

Panel Fields
Field	Internal Field Name	Data Type
ID	id	INTEGER
Title	title	STRING
Description	description	STRING
Panel Model Helper Functions
Get Comments	get_comments()	LIST<Comment>
Get Attachments	get_attachments()	LIST<Attachment>

Customer:

Customer Fields
Field	Internal Field Name	Data Type
ID	id	INTEGER
Name	customer_name	STRING
Address	address	STRING
City	city_name	STRING
State	state_name	STRING
Zip/Postal	zip_postal_code	STRING
Country	country_name	STRING
Phone	phone	STRING
Fax	fax	STRING
Special Instructions	special_instructions	STRING
Comments	comments	STRING
Company Discount	company_discount	FLOAT
<Tags>	tags	LIST<Tag>
<Contacts>	contacts	LIST<Contact>
<ContactCustomer>	contact_customers	LIST<ContactCustomer>
Customer Model Helper Functions
Get Comments	get_comments()	LIST<Comment>
Get Attachments	get_attachments()	LIST<Attachment>

Contact:

Contact Fields
Field	Internal Field Name	Data Type
ID	id	INTEGER
First Name	first_name	STRING
Last Name	last_name	STRING
Email	email	STRING
Address	address	STRING
Phone	phone	STRING
Fax	fax	STRING
Mobile	mobile	STRING
<Tags>	tags	LIST<Tag>
Contact Model Helper Functions
Get Comments	get_comments()	LIST<Comment>
Get Attachments	get_attachments()	LIST<Attachment>

Source:

Source Fields
Field	Internal Field Name	Data Type
ID	id	INTEGER
Custom ID	custom_formatted_id	STRING
Lab ID	lab_id	STRING
Display Name	display_name	STRING
Identifier	identifier	STRING
First Name	first_name	STRING
Last Name	last_name	STRING
Date of Birth	date_of_birth	DATETIME
Description	description	STRING
Longitude	longitude	FLOAT
Latitude	latitude	FLOAT
<Customer>	customer	QBENCH OBJECT
<Project>	project	QBENCH OBJECT
<Tags>	tags	LIST<Tag>
Source Model Helper Functions
Get Display ID (Custom ID if exists, else ID)	get_display_id()	STRING | INTEGER
Get Comments	get_comments()	LIST<Comment>
Get Attachments	get_attachments()	LIST<Attachment>

Tags:

Tag Fields
Field	Internal Field Name	Data Type
Value	value	STRING

Project:

Project Fields
Field	Internal Field Name	Data Type
ID	id	INTEGER
Custom ID	custom_formatted_id	STRING
Date Created	date_created	DATETIME
Title	title	STRING
Estimated Complete Date	estimated_complete_date	DATETIME
Date Started	date_started	DATETIME
Date Completed	date_completed	DATETIME
Percent Completion	percent_completion	INTEGER
Days Until Due	days_until_due	INTEGER
Result	result	STRING
<Tech>	tech	QBENCH OBJECT
<Tags>	tags	LIST<Tag>
<Orders>	orders	LIST<Order>
<Samples>	samples	LIST<Sample>
<Sources>	sources	LIST<Source>

Control:

Control Fields
Field	Internal Field Name	Data Type
ID	id	INTEGER
Result	result	STRING
Notes	notes	STRING
Test ID	test_id	INTEGER

Invoice:

Invoice Fields
QBench Object Relationship	Internal Field Name	Data Type
ID	id	INTEGER
Invoice Date	invoice_date	DATETIME
Due Date	due_date	DATETIME
Notes	notes	STRING
Paid	paid	BOOLEAN
Date Paid	date_paid	DATETIME
Status	status	STRING
Total	total	DECIMAL(19,2)
<Invoice Items>	invoice_items	LIST<InvoiceItem>
<Order>	order	QBENCH OBJECT
Invoice Model Helper Functions
Get Display ID (Custom ID if exists, else ID)	get_display_id()	STRING | INTEGER
Get Comments	get_comments()	LIST<Comment>
Get Attachments	get_attachments()	LIST<Attachment>
Get Customer	get_customer()	OBJECT

Invoice Item:

Invoice Item Fields
Field	Internal Field Name	Data Type
ID	id	INTEGER
Name	name	STRING
Rate	base_price	DECIMAL(19,2)
Quantity	quantity	INTEGER
Discount	discount	FLOAT
Surcharge	surcharge	FLOAT
Amount	amount	DECIMAL(19,2)
Invoice Item Type	invoice_item_type	STRING
<Assay>	assay	QBENCH OBJECT
<Panel>	panel	QBENCH OBJECT
<Invoice>	invoice	QBENCH OBJECT
<Turnaround>	turnaround	QBENCH OBJECT
Invoice Items Model Helper Functions
Get Expiring Stock By Date Range	get_expiring_stock_by_date_range()	LIST<InventoryStock>

Payment:

Payment Fields
QBench Object Relationship	Internal Field Name	Data Type
ID	id	INTEGER
Date Created	date_created	DATETIME
Payment Date	payment_date	DATETIME
Last Updated	last_updated	DATETIME
Customer ID	customer_id	INTEGER
Amount	amount	DECIMAL(19,2)
Unapplied Amount	unapplied_amount	DECIMAL(19,2)
Check Number	check_number	STRING
Template ID	template_id	INTEGER
<Customer>	customer	QBENCH OBJECT

Quotation:

Quotation Fields
QBench Object Relationship	Internal Field Name	Data Type
ID	id	INTEGER
UUID	uuid	STRING
Date Created	date_created	DATETIME
Status	status	STRING
Quotation Date	quotation_date	DATETIME
Payment Term	payment_term	STRING
Payment Term Days	payment_term_days	INTEGER
Description	description	STRING
Expiration Date	expiration_date	DATETIME
<Customer>	customer	QBENCH OBJECT
Title	title	STRING
Discount	discount	FLOAT
Sub Total	sub_total	DECIMAL(19,2)
Total	total	DECIMAL(19,2)
Email To	email_to	STRING
Date Emailed	date_emailed	DATETIME
Notes	notes	STRING
First Name	first_name	STRING
Last Name	last_name	STRING
Email Address	email_address	STRING
Company Name	company_name	STRING

Location:

Location Fields
Field	Internal Field Name	Data Type
ID	id	INTEGER
Name	name	STRING
Description	description	STRING
Tags	tags	LIST
Location Model Helper Functions
Get Total Samples	get_total_samples()	INTEGER
Get Sub Location IDs	get_sub_location_ids()	LIST<Integer>
Get Parent Locations	get_parents()	LIST<Location>
Get Comments	get_comments()	LIST<Comment>
Get Attachments	get_attachments()	LIST<Attachment>

Inventory Stock:

Inventory Stock
Field	Internal Field  Name	Data Type
ID	id	INTEGER
Item ID	item_id	INTEGER
<Inventory Item>	item	QBENCH OBJECT
Lot Number	lot_number	STRING
Location ID	location_id	INTEGER
<Location>	location	QBENCH OBJECT
Expiration Date	expiration_date	DATE
Received Date	received_date	DATE
Quantity	quantity	INTEGER
Notes	notes	STRING
Consumed	consumed	BOOLEAN
Date Consumed	date_consumed	DATE
Quantity Used	quantity_used	INTEGER
Quantity Available	quantity_available	INTEGER

Supplier:

Supplier Fields
Fields	Internal Field Name	Data Type
ID	id	INTEGER
Supplier Name	supplier_name	STRING
Phone	phone	STRING
Fax	fax	STRING
Address	address	STRING
Comments	comments	STRING
<Tags>	tags	LIST<Tag>
<Contacts>	contacts	LIST<Contact>

Inventory Item:

Inventory Item
Field	Internal Field Name	Data Type
ID	id	INTEGER
Name	name	STRING
Description	description	STRING
Category ID	category_id	INTEGER
<Category>	category	QBENCH OBJECT
Supplier ID	supplier_id	INTEGER
<Supplier>	supplier	QBENCH OBJECT
Catalog Number	catalog_number	STRING
Units	units	STRING
Size	size	STRING
<Available Inventory Stock>	available_stock	LIST<InventoryStock>
<Consumed Inventory Stock>	consumed_stock	LIST<InventoryStock>
<Tags>	tags	LIST<Tag>
Inventory Items Model Helper Functions
Gets Inventory Stock Expiring By Date Range	get_expiring_stock_by_date_range(start_date, end_date)	LIST<InventoryStock>

Equipment:

Equipment
Field	Internal Field Name	Data Type
ID	id	INTEGER
Name	name	STRING
Description	description	STRING
Model Number	model_number	STRING
Manufacturer	manufacturer	STRING
Serial Number	serial_number	STRING
Date Purchased	date_purchased	DATE
In Use Date	in_use_date	DATE
Disposal Date	disposal_date	DATE
Date Disposed	date_disposed	DATE
State	state	STRING
No Maintenance Required	no_maintenance_required	BOOLEAN
Location ID	location_id	INTEGER
<Location>	location	QBENCH OBJECT
Supplier ID	supplier_id	INTEGER
<Supplier>	supplier	QBENCH OBJECT
Asset ID of Equipment Image (Internal Use)	image_asset_id	INTEGER
<Tags>	tags	LIST<Tag>
<Records>	records	LIST<Record>
<Schedules>	schedules	LIST<Schedule>
Equipment Model Helper Functions
Get Next Due Date Schedule	get_next_due_date_schedule()	QBENCH OBJECT
Get Equipment Next Due Date Record	get_next_due_date_record()	QBENCH OBJECT
Get Sorted Schedules	get_sorted_schedules()	LIST<Schedule>
Get Sorted Schedules Without Records	get_sorted_schedules_without_records()	LIST<Schedule>
Get Equipment Comments	get_comments()	LIST<Comment>
Get Attachments	get_attachments()	LIST<Attachment>

Batch:

Batch
Field	Internal Field Name	Type
ID	id	INTEGER
Custom ID	custom_formatted_id	STRING
Display Name	display_name	STRING
Date Created	date_created	DATETIME
Assay ID	assay_id	INTEGER
<Assay>	assay	QBENCH OBJECT
<Tags>	tags	LIST<Tag>
Platemap Format	platemap_format	STRING
Parent <Batch> LIST	parents	LIST<Batch>
Child <Batch> LIST	children	LIST<Batch>
Associated <Sample> LIST	samples	LIST<Sample>
Associated <Test> LIST	tests	LIST<Test>
Associated <Equipment> LIST	equipment_list	LIST<Equipment>
Associated <Inventory Stock> LIST	inventory_stocks	LIST<InventoryStock>
Protocol ID	protocol_id	INTEGER
<Protocol>	protocol	QBENCH OBJECT
Protocol Step ID	current_batch_protocol_step_id	INTEGER
<Protocol Step>	current_batch_protocol_step	QBENCH OBJECT
Worksheet ID	worksheet_id	INTEGER
<Worksheet>	worksheet	QBENCH OBJECT
Platemap	platemap	DICTIONARY
Batch Model Helper Functions
Get Worksheet Configurations	get_worksheet_config()	STRING
Get Worksheet Data	get_worksheet_data()	DICTIONARY
Get Batches With Other Batches	get_all_batch_batches()	LIST<Batch>
Get Sample Batches	get_all_batch_samples()	LIST<Sample>
Get Test Batches	get_all_batch_tests()	LIST<Test>
Get Equipment By Batches	get_all_batch_equipment()	LIST<Equipment>
Get Batch Equipment Usage	get_all_batch_equipment_usage()	LIST<EquipmentUsage>
Get Batch Inventory Stock	get_all_batch_inventory_stocks()	LIST<InventoryStock>
Get Batch Inventory Stock Usage	get_all_batch_inventory_stocks_usage()	LIST<InventoryStockUsage>
Get Display ID (Custom ID if exists, else ID)	get_display_id()	STRING | INTEGER
Get Batch Comments	get_comments()	LIST<Comment>
Get Batch Attachments	get_attachments()	LIST<Attachment>



Accessioning Type:
Field	Internal Field Name	Data Type
ID	id	INTEGER
Value	value	STRING
Active	active	BOOLEAN



Comment:
Field	Internal Field Name	Data Type
ID	id	INTEGER
User	user	<USER OBJECT>
Contact	contact	<CONTACT OBJECT>
Message	message	STRING
Date Created	date_created	DATETIME

Turnaround Fields
Field	Internal Field Name	Data Type
ID	id	INTEGER
Name	name	STRING
Default Duration	default_duration	INTEGER
Default Percentage Surcharge	default_percentage_surcharge	FLOAT
Default Flat Surcharge	default_flat_surcharge	FLOAT
